    Fully Automatic Gift Box Making Machine With Servo Motor Touchscreen HMI

    Ask Lasest Price
    Brand Name : Zhongke
    Model Number : ZK-5540B
    Certification : CE, ISO900
    Price : Negotiable
    Payment Terms : 30% deposit+70%balance before shipment
    Supply Ability : 10 sets per month
    Delivery Time : 1month after received 30% deposit
    • Product Details
    • Company Profile

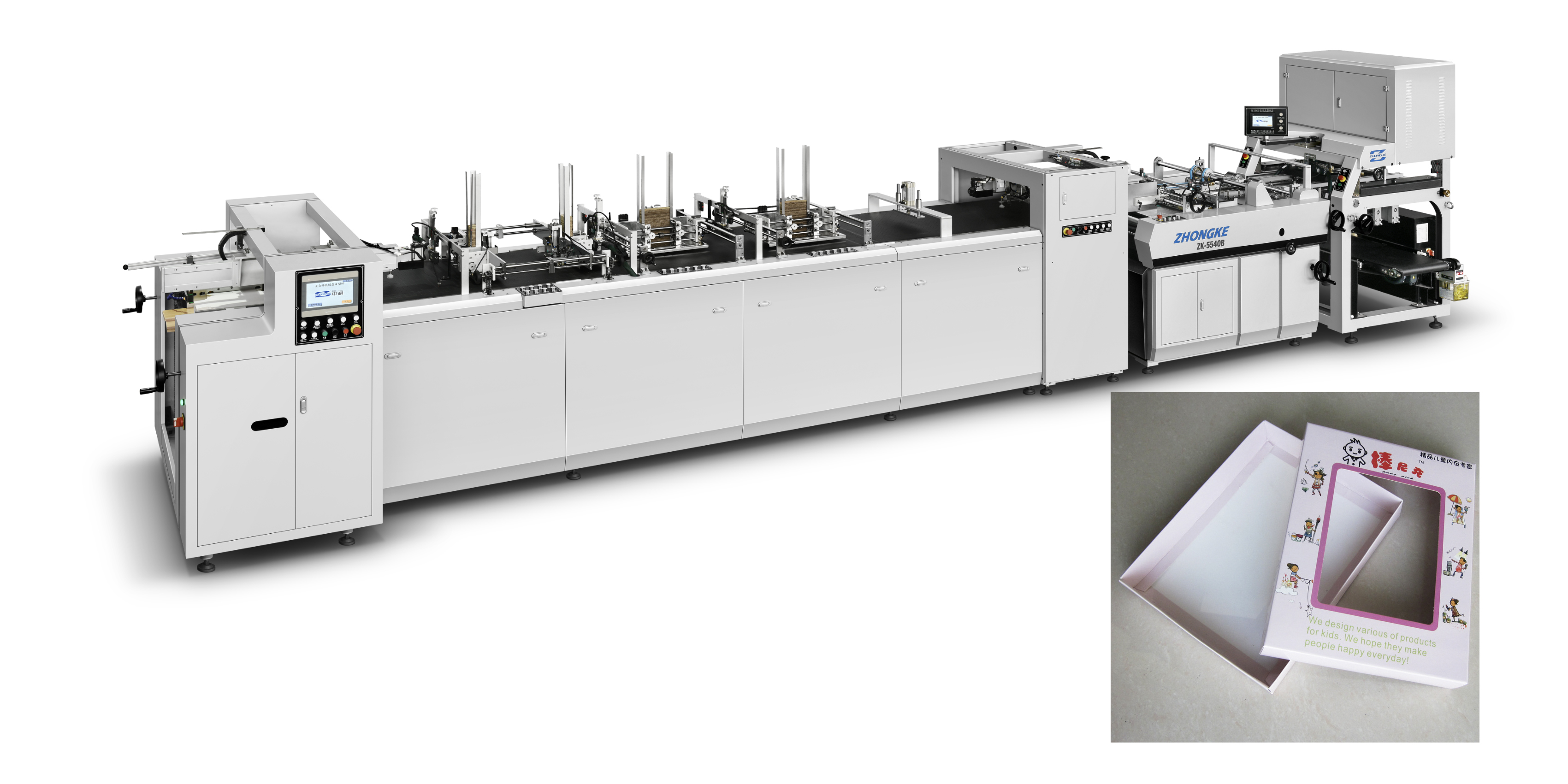

    Fully Automatic Gift Box Making Machine With Servo Motor Touchscreen HMI

    Fully Automatic Gift Box Making Machine With Servo Motor Touchscreen HMI


    Gift Box Making Machine Description:


    This Gift Box Making Machine adopts servo motor, PLC programmable controller, photoelectric tracer, touchscreen HMI and other systems, integrating mechanical, electric and pneumatic systems, making it possible that automatic paper feeding, inner board feeding, edge folding and gluing and box forming are complete in one operation. It is applicable for the production of wide-edged rigid boxes made 250-400g white cardboard, white board and corrugated paper. So it can be widely used for the production of wide-edged rigid packing boxes suitable for food, cosmetics, medicine, health care products, toys, and commodities.


    After box forming, changing the mechanism to achieve twice bubble pressing.


    1. High automation,greatly save labor and increase efficiency.

    2. Adopts,PLC and touch screen Type man-machine control system,simple operation,easy to learn

    3. Rational structure,low fault rate,with automatic fault alarm and trouble shooting

    4. with memory function,can save and recall setting.

    5. with timing control glue heating function.

    6. servo optical fiber positioning system,high positioning accuracy(±0.2mm)

    7. Robot arm automatic pick up and draw box, avoid scratch

    8. Servo control box wrapping,the four heads can work independently,suitable for various styles of box


    Gift Box Making Machine Main Specifications


    Sizes of paper

    A=Windth;

    B=Longth

    Amin220mm220mm300mm
    Amax620mm540mm540mm
    Bmin220mm220mm280mm
    Bmax740mm630m630mm
    Cardoard blank thicknessBEF300-450g/300-450g/

    Box size


    L=Length;

    W=Windth;

    H=Height;

    Lmin120mm120mm120mm
    Lmax550mm340mm340mm
    Wmin120mm120mm140mm
    Wmax415mm255mm255mm
    Hmin25mm25mm35mm
    Hmax130mm70mm60mm

    Turn in depth

    :R

    Rmin20mm20mm20mm
    Rmax70mm70mm60mm

    Broad-side edge width

    :S

    Smin//6mm
    Smax10mm
    Power380V 50Hz
    Noise level≤80dB
    Speed1800-2700(Pcs/h)
    Cardboard pile height350mm
    Load-bearing of cardboard laydown platform20kg
    Electrical power19kw
    Capacity of hot melt applicator8(Litre)
    Air supply80(Litre/min)
    Net weight2600kg
    Machine overall dimension1100mmx1700mmx2200mm

    Note

    The production speed depends on the material used, glue specifications and how skillfully the operator operates the machine.

    L=Hx2+20mm.

    the length of small box: L=Hx2+20mm

    The forming of wide-edged boxes also depends on the material, it shall be subject to the real samples.

    The specification is subject to change without notice.


    High quality service


    7X24-hour Telephone Consulting Service is available.


    Reply and solution will be provided in the shortest time upon customer’s service request.


    After-sales Support is available on a 7X24-hour basis, leaving no worries for customers.


    Equipment transportation and installation & commissioning are all free.

    After-sale service personnel will tell you how to maintain the equipment.


    After delivery of equipment, after-sale service personnel will give you a follow up phone call until you are satisfied.
