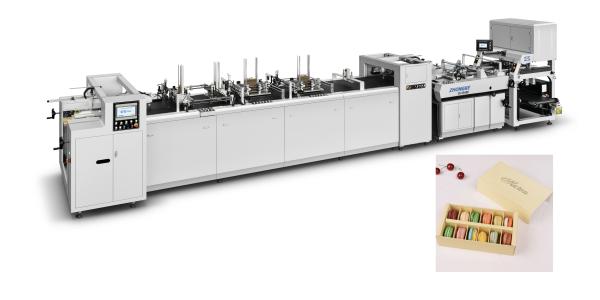

Fully Automatic Packaging Box Manufacturing Machine For Daily
Necessities Box
Packaging Box Manufacturing Machine Quick Detail:
Double wall box
High speed
Quick change over size
Robotech gluer(4 guns)
Small machine size, save space
1 year guarantee
Packaging Box Manufacturing Machine Description:
Main function:
1. Intelligent spray glue system, Realize automatic spraying glue
compensation function
2. Cardboard feeding automatically, achieves corrugate-feeding,
edge wrapping, corner folding and forming in one process.
3. It adopts PLC programmable controller, photoelectric tracing
system, air testing running system and touch-sensitive screen. The
entire process is automatic.
4. Infrared security protective system, to ensure safe operation.
5. Automatic trouble diagnosing.
6. Fast changing mould adjusting device
Packaging Box Manufacturing Machine Applications:
Fully Automatic Corrugated Box Making Machine is mainly applicable
to such packing materials like B, E, F corrugated paper, 12-20PT
ivory board and 250g-645g grey board, such as medium-grade paper
box for shoes, food, toys, and daily necessities).
Packaging Box Manufacturing Machine Specifications:
Packaging Box Manufacturing Machine Specifications

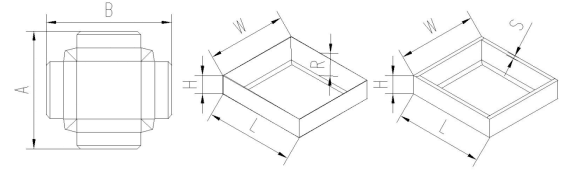

Paper wrap size
(A=width B=length) | | Ⅰ | Ⅱ | Ⅲ | | Cardoard blank thickness
| I Corrugared paper model | BEF |
| A min size | 220mm | 220mm | 300mm |
| A max size | 620mm | 540mm | 540mm | II/III Ivory board White board paper | 300g-450g |
| B min size | 220mm | 220mm | 280mm | Power | 380V 50Hz |
| B max size | 740mm | 630m | 630mm | Noise level | ≤80dB |
Box size
L=length W=width H=height | L min size | 120mm | 120mm | 120mm | Speed (Pcs/h) | 2000-2700 |
| L max size | 550mm | 340mm | 340mm | Cardboard pile height | 350mm |
| W min size | 120mm | 120mm | 140mm | Load-bearing of cardboard laydown platform | 20KG |
| W max size | 415mm | 255mm | 255mm | Electrical power | 10kw |
| H min size | 25mm | 25mm | 35mm | Glue tank capacity(Litre) | 8 L |
| H max size | 130mm | 70mm | 60mm | Air supply (Litre/min) | 80 L/min |
Turn in depth:R | R min size | 20mm | 20mm | 20mm | Net weight | 1650kg |
| R max size | 70mm | 70mm | 60mm |
| Broad-side edge width:S | S min size | | | 6mm | Machine overall dimension | L4XW1.5XH2.2m |
| S max size | 10mm |
The production speed depends on the material used on the box
size,on the glue specifications and on the skill of the operators.
Technical specifications are subject to change without prior
notice.
Competitive Advantage:
Exquisite process drives the future of rigid box.
Automatic Feeder Unit
Newly developed feeder enables high-speed separation and conveying
of corrugated paper and paper board
Folding device
High speed conveying, perfect glue applying and folding system
Automatic glue spraying system
High speed paper feeding and automatic precise glue spraying
Automatic forming unit
Its structure is simple, four angles are folded during high speed
operation.
3. Product general information
| Place of Origin: | CHINA |
| Brand Name: | ZHONGKE |
| Certification: | CE |
| Model Number: | ZK-5540 |
